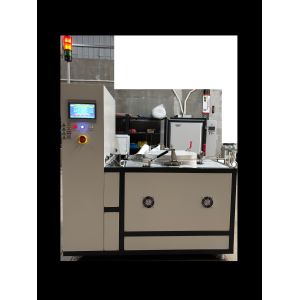

    Industrial Electric Furnace Hwf6630-10 Type Tank-Type Gas Phase Deposition Furnace

    Ask Lasest Price
    Brand Name : Chitherm
    Model Number : HWF6630-10
    Price : 23450.26-27917.00
    Payment Terms : L/C,T/T
    Supply Ability : 50 SET
    Delivery Time : 90 work days
    • Product Details
    • Company Profile

    Industrial Electric Furnace Hwf6630-10 Type Tank-Type Gas Phase Deposition Furnace

    Industrial Electric Furnace - HWF6630-10 Type Tank-Type Gas Phase Deposition Furnace
    Key Specifications
    AttributeValue
    AtmosphereNitrogen/Hydrogen/Acetylene
    Heating Zone DimensionsΦ660×300mm(D*H)
    Thermocouple TypeB
    Heating Rate≤6ºC/Min
    Temperature Control Stability±1ºC
    Product Overview

    The HWF6630-10 tank vapor deposition furnace is designed for medium-temperature heat treatment of electronic products. It supports vapor phase reaction processes in nitrogen, acetylene, and hydrogen atmospheres, as well as sintering processes under protective atmospheres. Equipped with a real-time computer monitoring system, this furnace is ideal for material process testing in research environments.

    HWF6630-10 Tank-Type Gas Phase Deposition Furnace interior view
    Technical Parameters
    • Model: HWF6630-10
    • Rated Temperature: 750°C
    • Maximum Temperature: 1000°C
    • Heating Zone Dimensions: Φ660×300mm (D×H)
    • Chamber Material: SUS310S
    • Maximum Heating Power: 16kW
    • Heating Method: Bottom + Surrounding
    • Temperature Control Points: 2 (Bottom + Side)
    • Thermocouple Type: K-type
    • Heating Element: FEC Ceramic Fiber Heater
    • Door Opening Method: Top-opening design
    • Temperature Stability: ±1°C
    • Temperature Control Instrument: Imported PID auto-tuning module
    • Program Steps: 20 steps
    • Alarm Protection: Over-temperature and thermocouple breakage alarms
    • Surface Temperature Rise: <35°C
    • Equipment Weight: Approx. 750kg
    • Overall Dimensions: 1185×1745×1780mm (W×D×H)
    Standard Delivery Contents
    ItemNoteQuantity
    Basic ComponentsFurnace1 UNIT
    Inspection CertificateCertificate of major outsourced components1 SET
    Control Cabinet1 UNIT
    Technical DocumentsInstructions and technical documents1 SET
    Temperature Control ModuleYamatake or similar imported brand1 SET
    Touchscreen10 inches1 SET
    Mass Flow MeterNitrogen 200L/min, others 50L/min3 PCS
    Facility Requirements
    • Environmental Conditions: Temperature 0~40°C, humidity ≤80% RH, no corrosive gases
    • Floor Requirements: Level, no significant vibration, load-bearing capacity >500 kg/m²
    • Power Requirements: Capacity >22 kVA, 3-phase 5-wire, 220/380 V, 50 Hz
    • Installation Space: 1500 mm × 1500 mm × 3000 mm (D × W × H)
    Frequently Asked Questions
    What products does Chitherm offer?

    We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

    What pre-sales services does Chitherm provide?

    We offer consultation services to help customers select suitable products and provide customizable solutions to meet specific requirements.

    What are Chitherm's core strengths?

    As a high-tech enterprise, Chitherm possesses patented technologies and core resources to deliver superior furnace solutions.

    About Hefei Chitherm Equipment Co., Ltd.

    Specializing in R&D, manufacturing, and sales of industrial and laboratory furnaces, our product range includes bell furnaces, box furnaces, vacuum furnaces, and more. These are widely used in advanced ceramics, electronic components, powder metallurgy, new energy, and other material processing applications.

    HWF6630-10 Tank-Type Gas Phase Deposition Furnace manufacturing facility HWF6630-10 Tank-Type Gas Phase Deposition Furnace quality inspection
